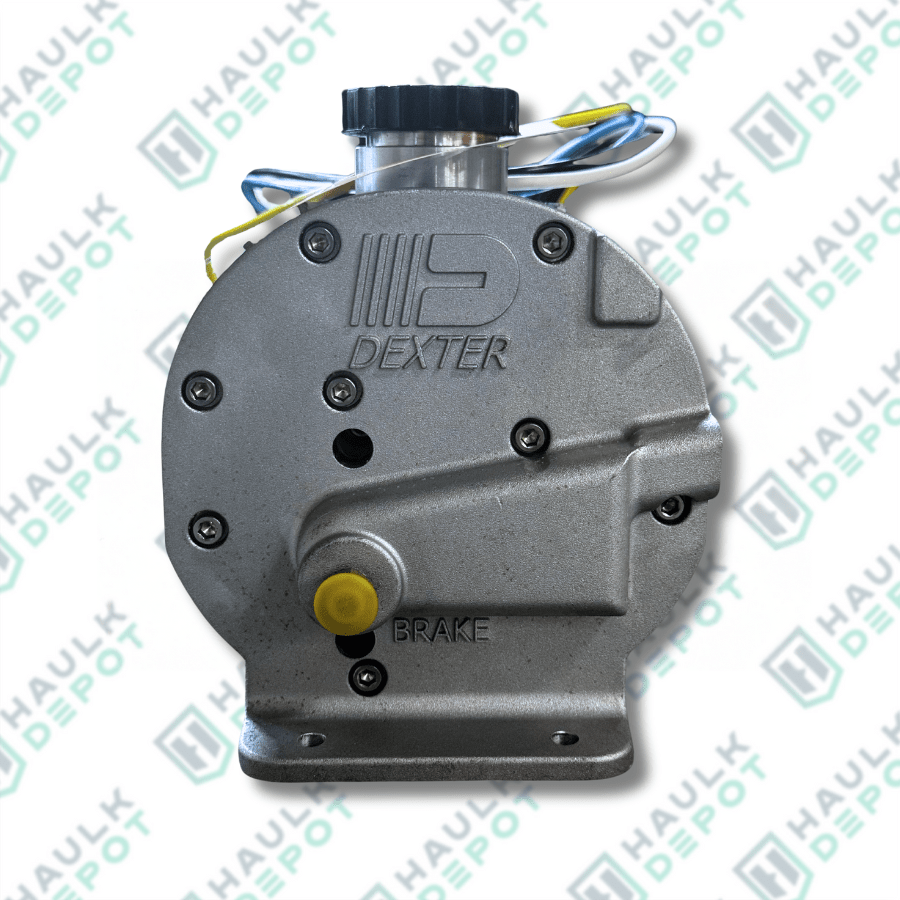

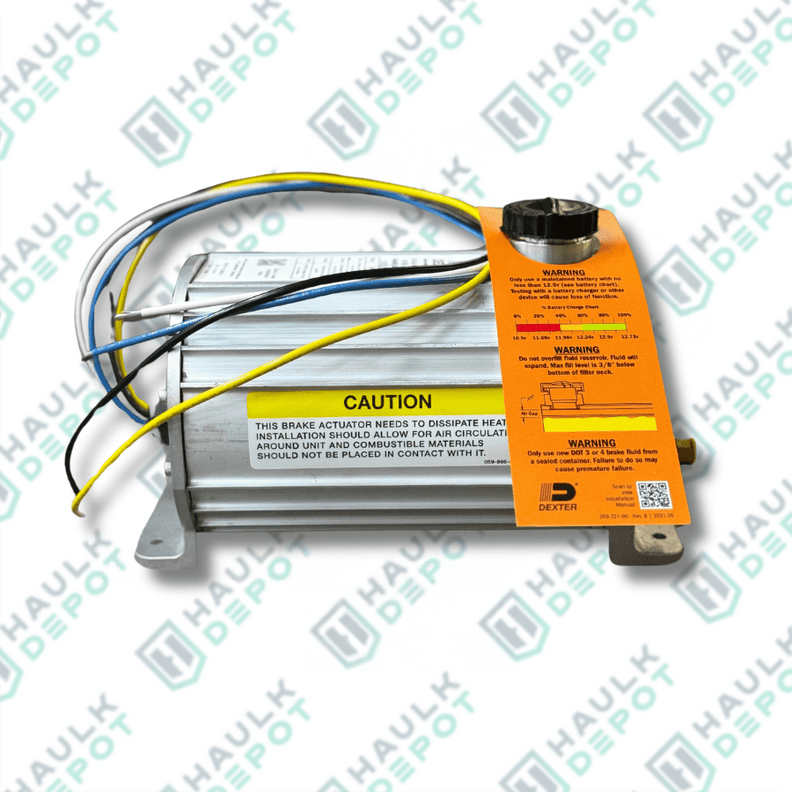

The Dexter DX Series 1,600 PSI Electric-Over-Hydraulic Brake Actuator is engineered for trailers equipped with disc brakes, delivering high-pressure, reliable stopping performance. Designed for demanding towing applications, it offers proportional braking via electric brake controllers for smooth and safe operation.
Detailed Information:
| Series |
DX |
| PSI Rating |
1600 PSI |
| Brake Compatibility |
Disc Brakes Only |
| Power Source |
12V DC |
| Hydraulic Port Size |
3/16" |
| Mounting Dimensions |
11" L x 6" W x 7" H |
| Mounting Hole Spacing |
2-1/2" (same side), 9-13/16" (opposite side) |
Fitting:
Works with electric brake controllers and requires a 7-way trailer connector (both sold separately). Compatible with most 9Ah breakaway kits. Designed for trailers with disc brakes, including single-, tandem-, and triple-axle setups.
Features:
-
Electric-Over-Hydraulic System: Provides immediate braking without surge delay.
-
High-Pressure Output: 1600 PSI delivers the stopping power needed for disc brakes.
-
Self-Priming Pump: Simplifies brake bleeding and prevents fluid backflow.
-
Vented Housing: Manages heat, moisture, and pressure for extended component life.
-
Wiring Protection: Automatically disables the unit if unsafe current levels are detected.
-
Corrosion-Resistant Build: Aluminum housing with stainless fasteners and Goretite seals.
-
Manual Override Support: Enables trailer brake control without vehicle braking—ideal for steep inclines.
Interchangeable Part Numbers:
Product Overview:
The Dexter DX Series 1600 PSI Hydraulic Brake Actuator is purpose-built for trailers with disc brakes, offering high-pressure responsiveness and rock-solid reliability. Whether towing marine craft, equipment, or cargo, this actuator ensures smooth, proportional braking across all conditions. With durable aluminum construction and advanced safety features, it provides lasting performance for serious towing demands.
