A broken or bent axle halts your haul immediately. Ordering a replacement axle requires exact dimensions down to fractions of 1". Getting those numbers wrong leads to tire rubbing, poor suspension tracking, and wasted freight costs on heavy parts.
Understanding trailer axle measurements protects your investment and ensures your trailer tracks true down the highway. This guide covers how to pull accurate figures directly from your trailer frame, springs, and hubs.
Key trailer axle measurements explained
Trailer axles do not use standard universal lengths across manufacturers. Utility trailers, boat trailers, enclosed cargo haulers, and equipment trailers all feature custom widths tailored to specific chassis designs. To order a direct replacement beam or complete axle assembly, you must record 4 critical core dimensions.
- Hub Face to Hub Face (HF): An accurate hub face measurement represents the exact span from the flat wheel-mounting surface of 1 hub to the flat wheel-mounting surface of the opposite hub. It ensures tires center properly inside wheel wells without hitting frames or protruding past fenders.
- Spring Center to Spring Center (SC): The distance between the leaf spring pack centers. Precise measurement is critical; even a 0.5" error causes chassis binding, rapid bushing failure, and severe frame stress.
- Axle Tube Diameter and Wall Thickness: These dimensions directly dictate axle capacity. Measuring them verifies the load rating if factory tags are missing or corroded.
- Spindle and Hub Geometry: This determines your bearing sizes, seal diameter, and wheel bolt pattern. Configurations include straight (identical bearings), tapered (larger inner bearings for heavier loads), and drop (offsets the wheel centerline to lower deck height).
- Camber Arch: An intentional upward bow built into the center of the beam. It flattens under full load to keep tires perpendicular to the road. Do not mistake this for a bent tube.
Tools you need
Accurate measurements require rigid tools that will not stretch, flex, or sag across wide spans. Gather these tools before lifting the chassis:
- Heavy duty tape measure with a wide 1" or 1.25" blade to prevent sagging across 7' or 8' spans.
- Digital caliper: Needed to measure outside axle tube diameter and spindle bearing journals down to 0.001".
- Set of 2 floor jacks and 4 jack stands: Rated to support the total gross vehicle weight rating (GVWR) of your trailer.
- 2 pairs of wheel chocks to secure the wheels on the ground.
- Lug wrench or impact socket (typically ¹³⁄₁₆" or ¾").
- Soapstone, paint marker, or silver grease pencil to mark reference centers on dark or rusted steel.
- Plumb bob or framing square for transferring overhead frame points to the ground when measuring drop axles.
- Wire brush to clean road grime, loose scale, and grease from spring seats and axle tags.
Step-by-step guide: how to measure a trailer axle
Measuring an axle requires methodical work to avoid common alignment errors. Follow this step-by-step process to learn how to measure trailer axle assemblies right on the trailer or off the frame.
Prepare the trailer for measurement
Safety comes first whenever you inspect trailer running gear. Park the trailer on a smooth, level concrete pad. Avoid asphalt on hot days because jack stands can sink and cause shifting.
- Chock all tires on the axle that is not being lifted. If working on a 1-axle trailer, secure both sides of the tongue coupler.
- Loosen the lug nuts on both wheels by ½ turn using your lug wrench while tires still contact the ground.
- Place your floor jack directly under the trailer main frame rail, behind or ahead of the spring hangers. Never lift directly under the center of the axle tube, as this bends the hollow steel beam and ruins factory camber.
- Elevate the trailer until the tires clear the floor by 2" to 3".
- Set heavy-duty jack stands under the frame rails and lower the jack so the frame rests securely on the stands.
- Remove the lug nuts and pull both wheels off to expose the hubs, brake drums, and leaf springs.
- Use a wire brush to remove dirt, grease, and rust buildup around the wheel mounting studs and spring perches.

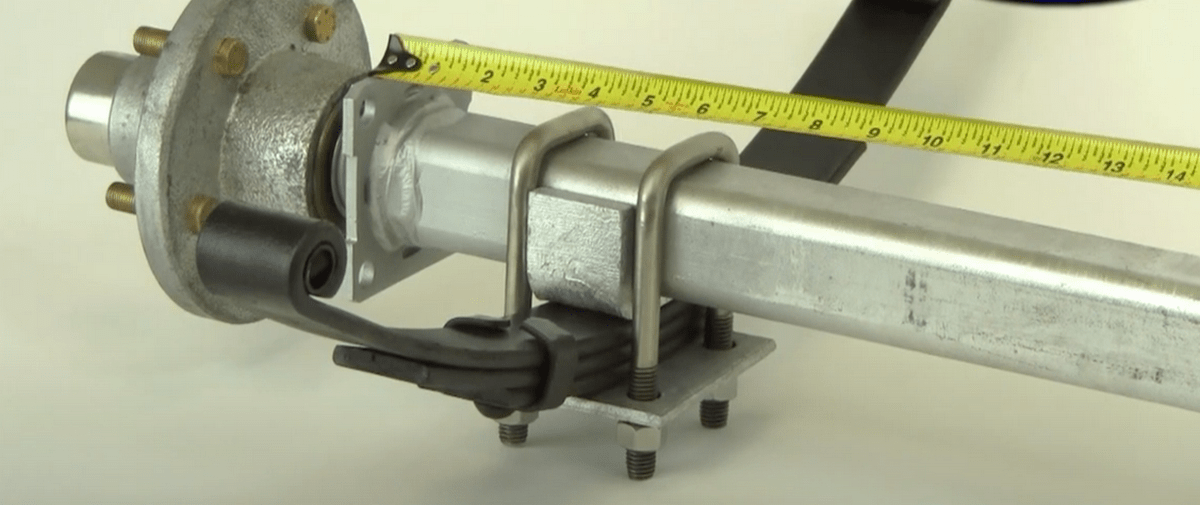

Measure the hub face
Follow this process on how to measure hub face on trailer axle components:
- Locate the flat, machined vertical surface on the hub from which the threaded wheel studs protrude. Do not measure from the outer tip of the grease cap or from the edges of the brake drum casting.
- Hook your tape measure over the outer face of 1 wheel stud on the left hub. Keep the tape pressed flush against the flat hub face plate.
- Pull the tape straight across the trailer under the chassis to the right hub.
- Read the measurement at the exact identical stud position on the opposite side.
- If an assistant is unavailable, clamp your tape measure hook to the stud flange using a small spring clamp to keep the tape rigid and flat.
Standard hub face lengths follow standard increments:
- 58" Hub Face: Common on small 4' wide utility and watercraft trailers.
- 72" to 73" Hub Face: Found on 5' wide utility and landscape trailers.
- 85" Hub Face: Standard for 6' wide cargo trailers.
- 89" to 95" Hub Face: Used on 7' wide car haulers and equipment trailers.
- 102" Hub Face: Maximum legal overall width for commercial deck-over trailers.
Record your measurement to the nearest ⅛".
Measure the spring center
Spring center determines how the axle bolts to your suspension hangers. When learning how to measure an axle, keeping the tape level during this step is critical.
Follow these 4 steps:
- Locate the spring seat perches welded onto the axle tube. Identify the center bolt that passes through the leaf spring stack.
- If the leaf springs remain installed, hook your tape to the outside edge of the left leaf spring band.
- Measure across to the inside edge of the right leaf spring band. Measuring from outside edge to inside edge yields the true center-to-center dimension without guessing where the center bolt lies.
- If the springs are detached, measure from the center of the alignment hole on the left spring seat to the center of the alignment hole on the right spring seat.
Double-check your math against your chassis frame:
Frame Outside Width = Spring Center + Spring Width (typically 1.75" or 2")
If your leaf springs measure 2" wide and your trailer frame rails measure 60" wide on the outside, your spring center equals 58". If your recorded numbers differ by more than 0.25", recheck your tape placement.
Measure the axle tube diameter
Axle tube size reveals structural capacity when the manufacturer data tag has worn off. Take your digital caliper and measure the outside diameter (OD) at 3 spots along the tube, away from welds, drop plates, or spring seats.
Use this reference table to match tube OD to standard capacity:
- 1.50" to 1.75" round tube: 2000 lbs. capacity (BT8 or straight 1" to 1-1/16" spindles).
- 2.375" (2-3/8") round tube: 3500 lbs. capacity (uses 5 on 4.5" bolt patterns, #84 spindles).
- 3.00" round tube: 5200 lbs. to 7000 lbs. capacity (uses 6-lug or 8-lug hubs, #42 spindles).
- 3.50" round tube: 7000 lbs. to 8000 lbs. capacity (heavy wall 0.25" or 0.312" steel).
- 4.00" to 5.00" round or square tube: 10000 lbs. to 12000 lbs. heavy commercial axles.
Note whether your axle tube is straight or features a 4" drop spindle. Drop axles lower the trailer center of gravity by 4", which is common on enclosed haulers, car trailers, and horse trailers.
Measure the overall axle length
Overall length includes the complete tip-to-tip span of the steel axle shaft, from the end of 1 spindle thread to the end of the other.
- Remove the dust cap, cotter pin, castle nut, and spindle washer from both ends if the hubs are off.
- Hook your tape measure over the threaded tip of 1 spindle.
- Pull the tape across the beam to the outer tip of the opposite spindle.
- Record this total tip-to-tip length.
Overall length confirms that custom replacement axles fit inside existing storage boxes or body panels. However, never order an axle based solely on overall tip-to-tip length. Spindle lengths vary based on bearing configurations, brake flanges, and hub depths. Hub face and spring center remain the industry standard specifications for ordering.
Alternative methods & special cases
Axle replacements often involve collision damage, custom builds, or unconventional suspension setups. When learning how to measure an axle for a trailer with damaged running gear, standard measuring procedures may not work directly. Use these alternative methods to solve complex measuring situations.
- Calculating Hub Face (Broken Axles): Do not measure a distorted axle directly. Instead, calculate it: Hub Face = Frame Width + (2 x Wheel Backspacing) + (2 x Desired Frame Clearance). Measure the frame's outside width, determine wheel backspacing (from the back rim lip to the mounting face), and allow a 1" to 1.5" minimum tire-to-frame clearance.
- Measuring Torsion Axles: These lack leaf springs. Instead of a spring center, measure the Inside (IB) and Outside (OB) bracket distances. Record the trailing arm's start angle (e.g., 45° down, level) and whether the brackets are top or side-mounted.
- Drop Axle Spindles: To determine the drop distance (standard is 4"), measure from a straight edge placed atop the main axle tube down to the spindle pin's horizontal centerline.
- Verifying Bolt Patterns: To ensure new hubs fit, count the studs and measure the circle diameter:
-
-
4, 6, and 8-Lug: Measure center-to-center across two directly opposite studs.
-
5-Lug: Measure from the back edge of one stud to the center of the furthest opposite stud.
-
Frequently Asked Questions
How do you measure a trailer axle?
Measure the hub face and the spring center. Jack up the trailer, support the frame on jack stands, and remove both wheels. Pull a tape measure from the flat wheel-mounting surface of 1 hub to the flat wheel-mounting surface of the opposite hub to obtain hub face. Next, measure the center-to-center distance between both leaf spring tie bolts to obtain the spring center.
Can I measure an axle while the wheels are still installed?
Measuring with wheels installed gives inaccurate estimates. Wheel thickness, rim backspacing, and tire bulge obstruct direct tape access to the hub face. For 100% precision, remove the wheels and measure directly from steel hub face to steel hub face.
How do I know what size my trailer axle is?
Check the metal identification tag stamped into the center or rear of the axle tube. If the tag is illegible, measure the outside diameter of the axle tube with a digital caliper and count the wheel studs. A 2.375" tube with 5 studs indicates a 3500 lbs. axle. A 3.00" tube with 6 or 8 studs indicates a 5200 lbs. to 7000 lbs. axle.
What happens if replacement spring seats are welded in the wrong position?
Installing an axle with incorrect spring centers forces the leaf springs inward or outward at an angle. This misalignment places severe side-load stress on hanger brackets, wears shackle bolts rapidly, ruins tire tread within 500 miles, and can fracture the leaf spring main eye. Always match spring center dimensions to within ⅛".
How are axle length measurements obtained?
Hook a rigid tape measure to the outer base plate of 1 wheel stud on the hub face. Extend the tape horizontally beneath the trailer chassis directly to the matching stud on the opposite hub. Keep the measuring tape level, taut, and clear of suspension hangers to prevent sagging, which can distort the final reading.
