Standard Trailer Ball Size & Hitch Ball Chart Explained

Towing safely begins with a secure connection between your vehicle and your cargo. Choosing correct trailer ball sizes prevents dangerous uncoupling events on the highway.

A mismatched coupler and ball setup causes severe sway, metal fatigue, and hitch failure. This comprehensive guide outlines the exact physical dimensions, weight ratings, and hardware requirements for every standard configuration used in North America.

What is a trailer hitch ball?

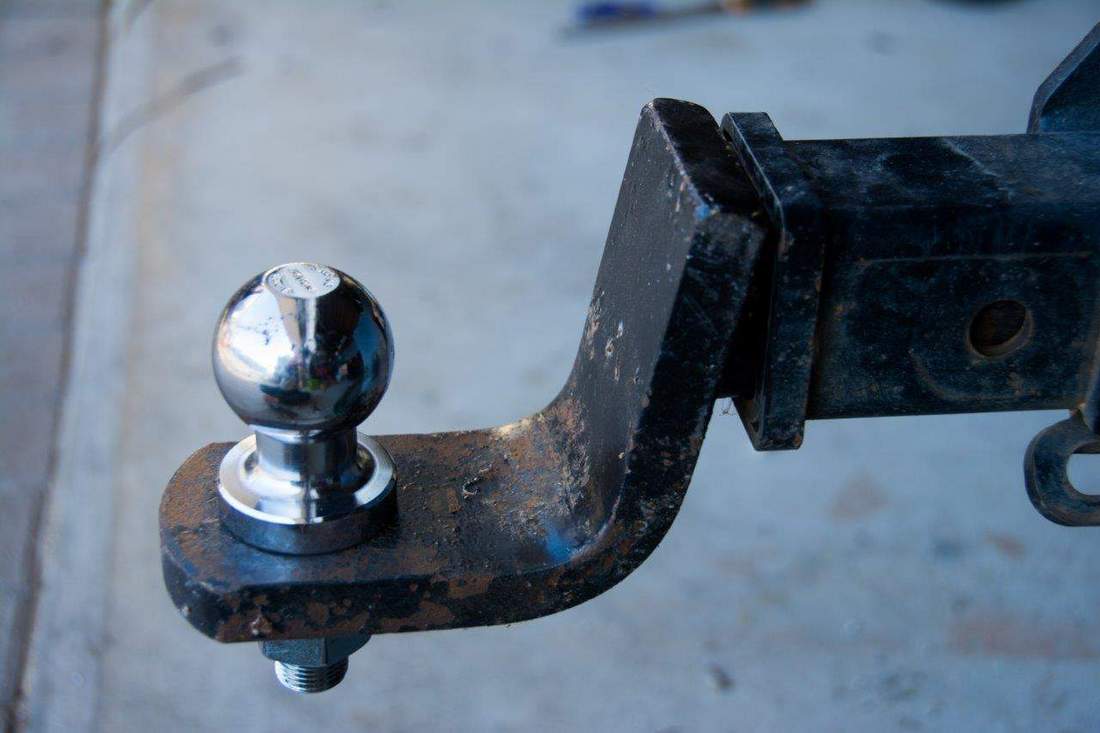

A trailer hitch ball is a machined spherical component mounted to a vehicle hitch assembly. It serves as the pivot joint for the trailer coupler, allowing articulation during turns, elevation changes, and road irregularities.

The structure consists of 3 distinct sections:

• The ball head: A spherical top section machined to precise tolerances to fit inside a matching coupler socket.
• The shank: A cylindrical threaded post extending downward from the ball base through the ball mount platform.
• Fastening hardware: A heavy helical lock washer and a grade 8 hex nut that secure the assembly against rotational forces.

Towing balls operate under severe multi-axis stress. They support tongue weight pushing directly downward while resisting dynamic pulling loads up to 30000 lbs. Manufacturers forge these components from high-strength carbon steel, heat-treated alloy steel, or 304 stainless steel.

Corrosion protection is mandatory for towing gear. Most products feature raw chrome plating, nickel finishing, or durable powder coating to resist road salt, mud, and water intrusion.

Standard trailer ball sizes

Commercial manufacturing conforms to 4 primary diameter standards. Selecting among these trailer hitch ball sizes requires checking the stamped markings on your trailer coupler latch handle.

1⅞" Hitch Ball

The 1⅞" ball diameter represents the smallest standard production format for vehicle towing. It mounts primarily to Class 1 and Class 2 hitch receivers with 1¼" or 2" shank receivers.

Typical technical specifications include:

• Ball diameter: 1⅞"
• Shank diameter: ¾" or 1"
• Gross trailer weight capacity: 2000 lbs to 3500 lbs
• Maximum vertical tongue weight: 200 lbs to 350 lbs

This format suits lightweight consumer applications. Typical uses include small utility haulers, lightweight jon boats, canoe trailers, small personal watercraft haulers, and light yard carts.

Couplers stamped for 1⅞" sockets will never seat onto larger balls. Forcing a mismatch will bend the internal latch clamp and destroy the locking collar.

2" Hitch Ball

The 2" dimension is the standard trailer ball size across light commercial, agricultural, and recreational transport. It balances high structural strength with wide vehicle compatibility.

Key technical specifications:

• Ball diameter: 2"
• Shank diameter: ¾", 1", or 1¼"
• Gross trailer weight capacity: 3500 lbs to 12000 lbs
• Maximum vertical tongue weight: 350 lbs to 1200 lbs

A 2" ball hitch fits standard Class 3 and Class 4 receiver hitches. It is standard equipment on midsize SUVs, half-ton pickups, and full-size vans.

This diameter supports enclosed cargo trailers, landscape haulers, tandem-axle utility platforms, midsize travel trailers, and side-by-side haulers. Shank thickness dictates overall load rating, meaning a ¾" shank rates lower than a solid 1¼" heat-treated shank.

2⁵⁄₁₆" Hitch Ball

Among heavy-duty towing ball sizes, the 2⁵⁄₁₆" spherical diameter handles substantial kinetic loads generated by heavy equipment, commercial freight, and multi-axle trailers. This format handles substantial kinetic loads generated by heavy equipment, commercial freight, and multi-axle trailers.

Core technical specifications:

• Ball diameter: 2⁵⁄₁₆"
• Shank diameter: 1" or 1¼"
• Gross trailer weight capacity: 6000 lbs to 30000 lbs
• Maximum vertical tongue weight: 600 lbs to 3000 lbs

Tow setups utilizing 2⁵⁄₁₆" units include Class 4, Class 5, and commercial gooseneck systems. They are found on ¾-ton and 1-ton trucks hauling heavy plant machinery, triple-axle horse trailers, heavy dump trailers, large toy haulers, and commercial car haulers.

Gooseneck installations mount this ball directly over the rear truck axle using dedicated under-bed subframes to maximize payload distribution.

3" Hitch Ball

The 3" diameter is an industrial-grade format reserved exclusively for severe-duty commercial hauling and heavy agricultural equipment.

Engineering parameters:

• Ball diameter: 3"
• Shank diameter: 1½" to 2"
• Gross trailer weight capacity: 25000 lbs to 40000 lbs
• Maximum vertical tongue weight: 3000 lbs to 5000 lbs

Standard bumper-pull receivers cannot accept 3" equipment. These balls install directly into specialized heavy-duty gooseneck hitches, construction lowboys, and agricultural bulk tankers.

Vehicle requirements demand Class 5 or commercial Class 6 chassis cabs. Grade 8 hardware and torque values exceeding 450 ft lbs are mandatory to maintain physical stability under maximum dynamic shock loads.

Trailer ball sizes chart

Refer to this trailer ball size chart to verify dimensions, weight thresholds, shank requirements, and receiver classes before purchasing hardware.

Reviewing standard tow hitch ball sizes shows that shank diameter directly controls overall strength. A 2" ball with a ¾" shank carries a rating of only 3500 lbs, whereas a 2" ball paired with a 1¼" shank safely supports up to 12000 lbs.

Common trailer hitch ball sizes explained

Selecting safe common hitch ball sizes requires calculating Gross Trailer Weight (GTW) and Tongue Weight (TW). GTW represents the total mass of the trailer plus all cargo, fluids, and auxiliary gear. TW measures the downward static force exerted on the hitch sphere.

Towing industry standards categorize applications through 5 receiver classes:

1. Class 1: Up to 2000 lbs GTW; 200 lbs TW; uses 1⅞" ball.
2. Class 2: Up to 3500 lbs GTW; 350 lbs TW; uses 1⅞" or 2" ball.
3. Class 3: Up to 8000 lbs GTW; 800 lbs TW; uses 2" ball.
4. Class 4: Up to 12000 lbs GTW; 1200 lbs TW; uses 2" or 2⁵⁄₁₆" ball.
5. Class 5: Up to 20000 lbs GTW; 2000 lbs TW; uses 2⁵⁄₁₆" or 3" ball.

Matching hitch dimensions to marine equipment presents unique challenges. Marine trailers experience thermal shock and salt immersion.

Calculating the proper marine hitch diameter depends directly on vessel length and hull construction. Single-axle aluminum skiffs or personal watercraft trailers rely on 1⅞" balls.

Fiberglass sport boats, wakeboard rigs, and offshore center consoles exceeding 3500 lbs use 2" or 2⁵⁄₁₆" configurations. Marine hardware should feature 304 stainless steel construction to stop galvanic corrosion caused by brackish waterways.

Towing assemblies follow the weak-link rule. Your actual capacity equals the lowest-rated individual component in the setup.

If your vehicle rates for 10000 lbs, your hitch receiver rates for 10000 lbs, but your ball rates for 3500 lbs, your safe towing ceiling remains 3500 lbs. Exceeding this boundary shears mounting shanks and causes catastrophic road disconnects.

How to measure hitch ball size

If markings have worn off from road debris or surface rust, follow this step-by-step procedure to determine how to measure hitch ball size accurately.

Tools required:

• 6" digital dial caliper
• Standard flexible tape measure
• Steel machinist rule

Measurement steps:

1. Measure ball diameter: Clamp the jaws of your digital caliper across the widest central equator of the sphere. Do not measure across the top flat crown. The reading will read 1.875" (1⅞"), 2.000" (2"), 2.312" (2⁵⁄₁₆"), or 3.000" (3").
2. Measure shank diameter: Place caliper jaws across the threaded section below the mounting collar. Standard shanks measure 0.75" (¾"), 1.00" (1"), 1.25" (1¼"), or 1.50" (1½").
3. Measure shank length: Lay a steel rule flat against the bottom surface of the ball collar down to the end of the threads. The shank must extend through the ball mount platform with at least 2 full threads visible below the tightened nut.
4. Measure coupler socket diameter: If the ball is missing, turn the coupler upside down. Measure the internal metal socket at the widest spherical cavity. The internal cavity matches the required ball diameter within 0.03" manufacturing clearance.

How to choose the right trailer ball

Selecting towing hardware demands verifying physical dimensions, vehicle geometry, metal finishes, and mechanical torque.

Evaluate these critical parameters during hardware selection:

1. Gross weight verification: Check the vehicle VIN certification label and trailer manufacturer data plate. Select a ball capacity equal to or greater than the maximum trailer GVWR. When verifying gross weight for marine transport, confirm the required boat trailer ball size matches the loaded vessel, fuel, and trailer gear combined.
2. Shank hole fitment: The shank diameter must match the mounting hole in your ball mount drawbar. Installing a ¾" shank into a 1" mount hole causes dangerous lateral play, uneven stress, and eventual shank fracture. Use a hardened steel reducer bushing only when certified by the hitch manufacturer.
3. Drop and rise alignment: Your trailer chassis must ride parallel to the highway surface. Measure the distance from the ground to the top of your vehicle receiver tube, then measure from the ground to the base of the level coupler. The difference determines whether your ball mount requires a drop or a rise to maintain horizontal stability.
4. Material selection for different environments: Chrome-plated carbon steel serves standard dry highway hauling. Commercial operators working in road salt or marine launch ramps should select solid stainless steel to eliminate flaking and rust pitting.
5. Correct installation torque: Hitch balls rely on massive clamping pressure to prevent thread fatigue. Under-torqued nuts can loosen, while over-torqued threads strip.

Use these standard torque values with a calibrated click-type torque wrench:

• ¾" shank diameter: 160 ft lbs
• 1" shank diameter: 250 ft lbs
• 1¼" shank diameter: 450 ft lbs
• 1½" shank diameter: 600 ft lbs

Never lubricate the shank threads prior to torquing unless instructed by the manufacturer. Dry torque specs ensure proper friction locking between the nut, lock washer, and drawbar face. Check fastener torque every 1000 miles of active transport.

Frequently Asked Questions

What is the standard ball hitch size? ▼

The standard dimension across passenger vehicles, SUVs, and half ton pickup trucks is 2". It handles light to intermediate loads from 3500 lbs to 12000 lbs. This dimension pairs with Class 3 and Class 4 receiver platforms. It provides reliable towing stability for standard travel campers, tandem axle landscape trailers, and single engine marine craft without exceeding rear axle load ratings.

Can a smaller hitch ball fit a larger coupler? ▼

Never pair a smaller ball with a larger coupler. Placing a 1⅞" ball inside a 2" coupler creates dangerous vertical play and loose internal contact. The locking jaw cannot grip the undersized sphere securely, allowing the coupler to pop off the hitch over rough pavement, railroad tracks, or sudden braking zones, leading to trailer runaway.

Are all gooseneck balls the same size? ▼

No, gooseneck balls come in 2⁵⁄₁₆" and 3" diameters. The 2⁵⁄₁₆" size covers most agricultural, livestock, and commercial equipment trailers with capacities up to 30000 lbs. The 3" diameter serves severe duty commercial lowboys and industrial flatbeds rated up to 40000 lbs. Always confirm the internal diameter of your trailer gooseneck coupler before locking the latch collar.

What torque is required for a trailer ball nut? ▼

Torque requirements depend strictly on shank diameter and fastener grade. Standard ¾" shanks require 160 ft lbs, 1" shanks require 250 ft lbs, and 1¼" shanks require 450 ft lbs. Always apply a calibrated torque wrench to dry threads without grease. Verify that the helical lock washer flattens completely against the mounting platform, and recheck torque every 1000 miles.

What is the most common ball hitch size? ▼

The 2" ball is the most common size in North America. It equips standard utility haulers, recreational travel trailers, enclosed cargo haulers, and midsize boat trailers. Its high versatility comes from fitting standard 2" receiver hitches on passenger trucks and SUVs, offering high strength across Gross Vehicle Weight Ratings between 3500 lbs and 12000 lbs.
